High Performance Drills for the Exploration Industry

Authorized for Sale by Desert Drilling Supply!

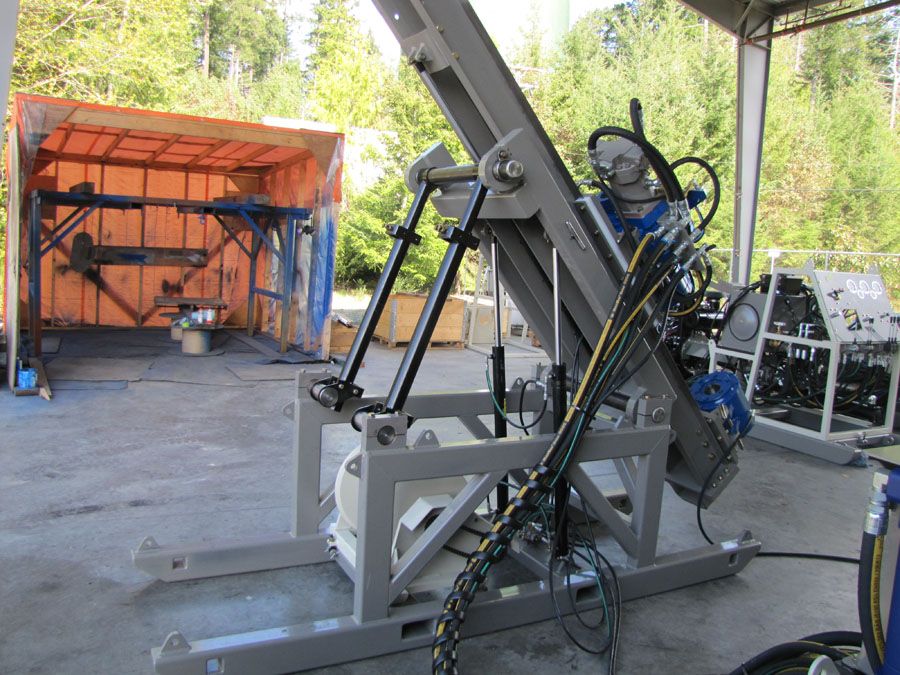

A5

Zinex Mining Corp A5

The A5 is one of the most recognized diamond core drills worldwide. Now with over 400 units in service its proven itself in every country which mineral exploration is conducted, from the deserts of Sudan and jungles of Columbia to here at home in Canada.

The A5 has deep hole capabilities but is also simple to break apart and reassemble for fly projects. It easily mounts into a shack with rod handler capabilities making it one of the most versatile drills in the industry.

All of the A5 manufactured drills are built in quantity with CNC cut and formed parts assuring top of the line quality. They are constructed using jigs that uphold the dedication to clients that all our fabricated parts will fit every drill manufactured. This means that all of our parts are interchangeable from one drill to another.

The A5 was designed by a team consisting of a Driller, Fabricator and Engineer. This enabled us to keep it simple for field repairs while using the best materials and fabrication techniques maximizing our power to weight ratio for the best in the industry.

Download the specs...
A5
U5

Zinex Mining Corp U5

The U5 is an underground version of the well known AS. Having the same hydraulic power module and controls it allows contractors to maintain and common fleet of drills which crews are familiar with and parts are interchangeable. This in turn reduces training time and cost of inventory for spare and consumable parts

The U5 was designed by our team assuring simplicity while upholding our exceptional standards of strength and durability. All of our parts are fabricated in batches of 10 allowing us to keep our prices competitive and quality consistent.

All of our Hydraulic parts are locally supplied and of the highest quality. Every drill is set up the same and tested thoroughly before it leaves our manufacturing facility.

This underground drill can also be used on surface having a 5.5’stroke and has become popular as a track and truck mounted unit having mast dump capabilities. The main skid frame accepts a diesel engine in place of the electric motor. An AT surface tower can be installed to allow for pulling of 10’/3m tubes.

Download the specs...
